Feature:

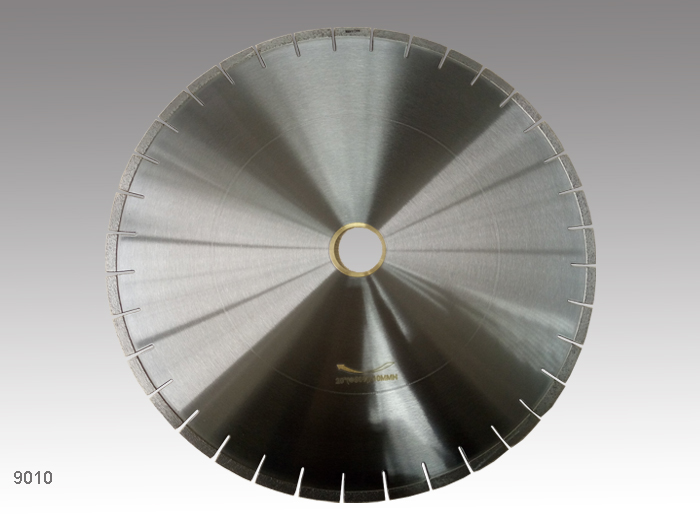

1. Item No.: 9010
2. Fasting Cutting with wide slot.
3. Segment height is 10mm available.
4. No Chipping: Diamonds are always on both sides of segments which are fine enough to provide fast and chip-free cutting.
5. Straight Cutting: A groove appears on the segment during cutting because of evenly distributed diamonds to keep straight cutting.
6. Consistency: It guarantees consistent performance throughout the cutting process.
|
Item No. |
Dia. |
Segment Thickness (mm) |
Height (mm) |
Hole (mm) |
Segment No. |
|
9010012 |
12"(300mm) |
2.8 |
10 |
50/60 |
22 |
|
9010014 |
14"(350mm) |
3.2 |
10 |
50/60 |
25 |
|
9010016 |
16"(400mm) |
3.5 |
10 |
50/60 |
29 |
|
9010018 |
18"(450mm) |
4.0 |
10 |
50/60 |
33 |
|
9010020 |
20"(500mm) |
4.2 |
10 |
50/60 |
37 |
|
9010022 |
22"(550mm) |
4.6 |
10 |
50/60 |
43 |
|
9010024 |
24"(600mm) |
4.6 |
10 |
50/60/80 |
43 |
|
9010028 |
28"(700mm) |
5.0 |
10 |
50/60/80 |
51 |
|
9010030 |
30"(750mm) |
5.2 |
10 |
50/60/80 |
55 |
|
9010032 |
32"(800mm) |
5.5 |
10 |
50/60/80/100 |
58 |
Other sizes are available on request. Silent and no-silent core are available on request.
