Description:

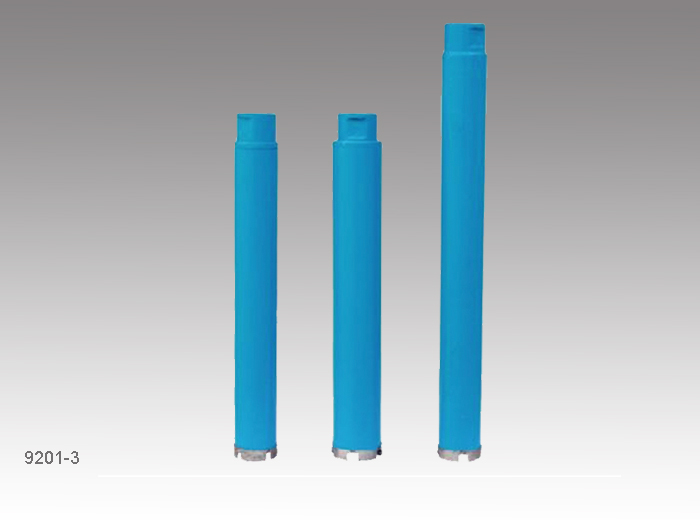

Reinforced concrete drill - the building construction tool has following features:
- Fast drill
- Steady going
- Longer life-span
- Diamond arrangement
In the lapidary industry as well as construction industry, often, holes need to be executed by tools. We have designed the exact core drill to meet these requirements. Concrete diamond core bit has excellent ability in drilling concrete, reinforced concrete and brick wall. Thinner diamond segment and thinner tube wall can easily reduce the resistance and increase the drilling speed (compared with the assembly type).
Features:
1. Item No.:9102W.
2. Fast drilling under dry condition.
3. Reduce the usage of electricity and the noise level during the operation of the tools.
4. Excellent performance is equal to any premium segmented core bit on the market.
5. Very consistent performance throughout the drilling process.
|
Outside Diameter & Tube Length |
Size of Slot |
Slots |
Wall Thickness |
Application |
|
32mm(1 1/4") with 150mm |
15x10x3.0 |
3 |
2 |
Dry Cut |
|
38mm (1 1/2") with 150mm |
15x10x3.0 |
3 |
2 |
Dry Cut |
|
42mm(1 5/8") with 150mm |
15x10x3.0 |
3 |
2 |
Dry Cut |
|
52mm(2") with 150mm |
24x10x3.5 |
3 |
2 |
Dry Cut |
|
58mm(2 1/4") with 150mm |
24x10x3.5 |
3 |
2 |
Dry Cut |
|
63mm(2 1/2") with 150mm |
24x10x3.5 |
3 |
2 |
Dry Cut |
|
65mm (2 11/20") with 150mm |
24x10x3.5 |
3 |
2 |
Dry Cut |
|
68mm(2 2/3") with 150mm |
24x10x3.5 |
3 |
2 |
Dry Cut |
|
72mm(2 17/20") with 150mm |
24x10x3.5 |
4 |
2 |
Dry Cut |
|
82mm(3 2/9") with 150mm |
24x10x3.5 |
4 |
2 |
Dry Cut |
|
92mm(3 5/8") with 150mm |
24x10x3.5 |
4 |
2 |
Dry Cut |
|
102mm(4") with 150mm |
24x10x3.5 |
4 |
2 |
Dry Cut |
|
110mm(4 1/3") with 150mm |
24x10x3.5 |
5 |
2 |
Dry Cut |
|
112mm(4 2/5") with 150mm |
24x10x3.5 |
5 |
2 |
Dry Cut |
|
117mm(4 3/5") with 150mm |
24x10x3.5 |
5 |
2 |
Dry Cut |
|
122mm(4 4/5") with 150mm |
24x10x3.5 |
6 |
2 |
Dry Cut |
|
127mm(5") with 150mm |
24x10x3.5 |
6 |
2 |
Dry Cut |
|
132mm(5 1/5") with 150mm |
24x10x3.5 |
6 |
2 |
Dry Cut |
|
142mm(5 3/5") with 150mm |
24x10x3.5 |
6 |
2 |
Dry Cut |
|
152mm (6") with 150mm |
24x10x3.5 |
6 |
2 |
Dry Cut |
|
162mm(6 3/8") with 150mm |
24x10x3.5 |
7 |
2 |
Dry Cut |
|
182mm (7 1/6") with 150mm |
24x10x3.5 |
7 |
2 |
Dry Cut |
|
200mm (7 7/8") with 150mm |
24x10x3.5 |
8 |
2 |
Dry Cut |
