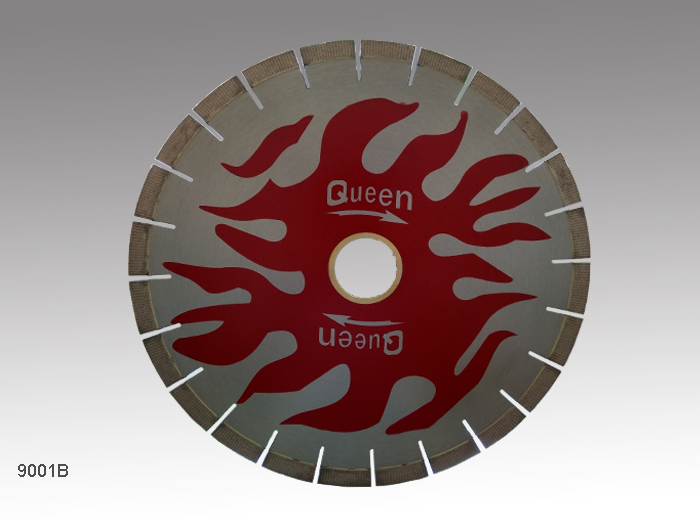

Standard Arix Diamond Granite Blade
Feature:
1. Item No.: 9001B.
2. Fasting Cutting: Standard Arix Diamond Blade can use 4.5--5 meters/minute to cut 3cm thickness hard granite slab; the speed is even 210% faster than normal blade.
3. Low Noise:Standard Arix Diamond Bladehas 0.5-2.5DB lower than traditional blades.
4. No Chipping: Standard Arix Diamond Blade will not cause chipping at all because diamonds are always on both sides of segments which are fine enough to provide fast and chip-free cutting.
5. Straight Cutting: A groove appears on the segment during cutting because of evenly distributed diamonds to keep straight cutting.
6. Consistency: Standard Arix Diamond Blade guarantees consistent performance throughout the cutting process.
|
Item No. |
Dia. |
Segment Thickness (mm) |
Height (mm) |
Hole (mm) |
Segment No. |
|
9001B012 |
12"(300mm) |
2.8 |
15/20 |
50/60 |
21 |
|
9001B014 |
14"(350mm) |
3.2 |
15/20 |
50/60 |
24 |
|
9001B016 |
16"(400mm) |
3.5 |
15/20 |
50/60 |
28 |
|
9001B018 |
18"(450mm) |
4.0 |
15/20 |
50/60 |
32 |
|
9001B020 |
20"(500mm) |
4.2 |
15/20 |
50/60 |
36 |
|
9001B022 |
22"(550mm) |
4.6 |
15/20 |
50/60 |
42 |
|
9001B024 |
24"(600mm) |
4.6 |
15/20 |
50/60/80 |
42 |
|
9001B028 |
28"(700mm) |
5.0 |
15/20 |
50/60/80 |
50 |
|
9001B030 |
30"(750mm) |
5.2 |
15/20 |
50/60/80 |
54 |
|
9001B032 |
32"(800mm) |
5.5 |
15/20 |
50/60/80/100 |
57 |
