Feature:

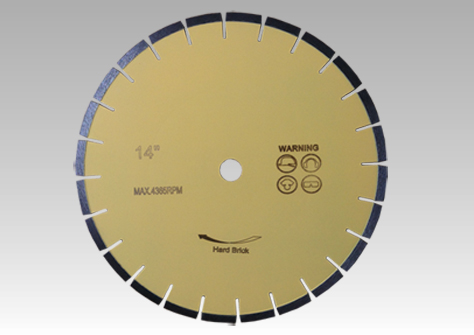

1. Item No.: 9012
2. Fasting Cutting with Narrow segment gap.
3. Segment height is 10mm available.
4. No Chipping: Diamonds are always on both sides of segments which are fine enough to provide fast and chip-free cutting.
5. Straight Cutting: A groove appears on the segment during cutting because of evenly distributed diamonds to keep straight cutting.
6. Consistency: It guarantees consistent performance throughout the cutting process.
|
Item No. |
Dia. |
Segment Thickness (mm) |
Height (mm) |
Hole (mm) |
Segment No. |
|
9012012 |
12"(300mm) |
2.8 |
10 |
50/60 |
21 |
|
9012014 |
14"(350mm) |
3.2 |
10 |
50/60 |
24 |
|
9012016 |
16"(400mm) |
3.5 |
10 |
50/60 |
28 |
|
9012018 |
18"(450mm) |
4.0 |
10 |
50/60 |
32 |
|
9012020 |
20"(500mm) |
4.2 |
10 |
50/60 |
36 |
|
9012022 |
22"(550mm) |
4.6 |
10 |
50/60 |
42 |
|
9012024 |
24"(600mm) |
4.6 |
10 |
50/60/80 |
42 |
|
9012028 |
28"(700mm) |
5.0 |
10 |
50/60/80 |
50 |
|
9012030 |
30"(750mm) |
5.2 |
10 |
50/60/80 |
54 |
|
9012032 |
32"(800mm) |
5.5 |
10 |
50/60/80/100 |
57 |
Other sizes are available on request. Silent and no-silent core are available on request.
