Laser Cutting Silent Core Blade
infomation:

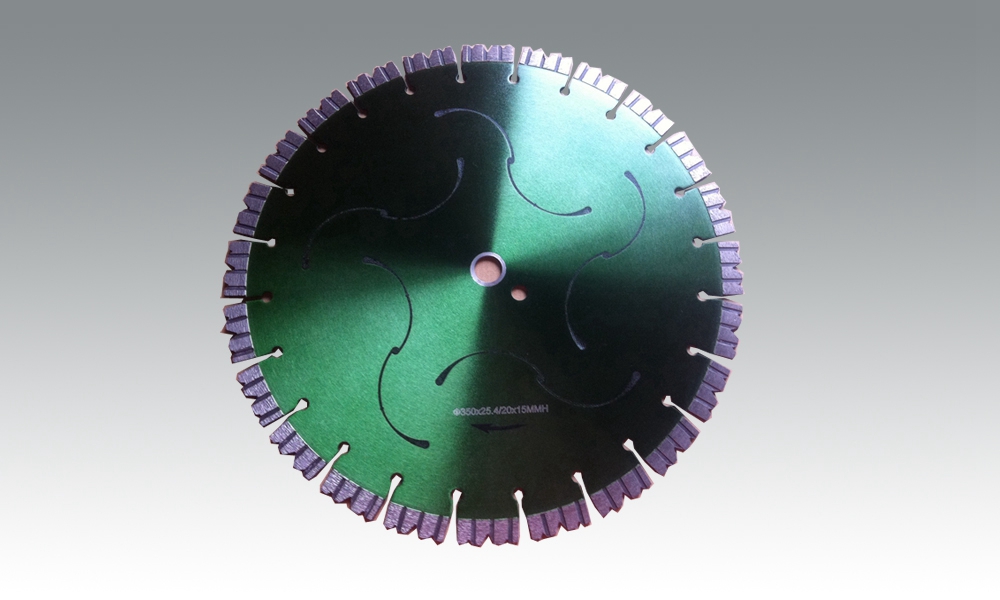

Laser Cutting Silent Core Blade
Number: 9002G

Description

 Laser Cutting Silent Core Blade

Feature:


1. Item No.: 9002G
2. Fasting Cutting.
3. Low Noise: Laser cutting silent core reduces noises and cost, economic type.
4. No Chipping: It will not cause chipping at all because diamonds are always on both sides of segments which are fine enough to provide fast and chip-free cutting.
5. Straight Cutting: A groove appears on the segment during cutting because of evenly distributed diamonds to keep straight cutting.
6. Consistency: Guarantees consistent performance throughout the cutting process.



Item No.

Dia.

Segment Thickness (mm)

Height (mm)

Hole (mm)

Segment No.

9002G012

12"(300mm)

2.8

15/20

50/60

21

9002G014

14"(350mm)

3.2

15/20

50/60

24

9002G016

16"(400mm)

3.5

15/20

50/60

28

9002G018

18"(450mm)

4.0

15/20

50/60

32

9002G020

20"(500mm)

4.2

15/20

50/60

36

9002G022

22"(550mm)

4.6

15/20

50/60

42

9002G024

24"(600mm)

4.6

15/20

50/60/80

42

9002G028

28"(700mm)

5.0

15/20

50/60/80

50

9002G030

30"(750mm)

5.2

15/20

50/60/80

54

9002G032

32"(800mm)

5.5

15/20

50/60/80/100

57
