Location:Home > Products
CUTTING   >  Stone Diamond Blade  >

Short Segment Blade
infomation:

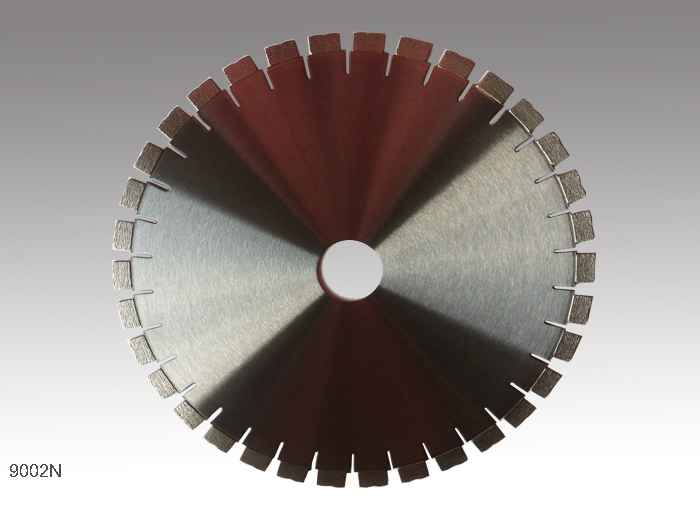

Short Segment Blade
Number: 9002N

Description

 Short Segment Blade

Feature:


1. Item No.: 9002N
2. Fasting Cutting: Short Segment Blade is designed for fast cutting.
3. Low Noise.
4. No Chipping: Short Segment Blade will not cause chipping at all because diamonds are always on both sides of segments which are fine enough to provide fast and chip-free cutting.
5. Straight Cutting: A groove appears on the segment during cutting because of evenly distributed diamonds to keep straight cutting.
6. Consistency: It guarantees consistent performance throughout the cutting process.



Item No.

Dia.

Segment Thickness (mm)

Height (mm)

Hole (mm)

Segment No.

9002N012

12"(300mm)

3.0

15/20

50/60

30

9002N014

14"(350mm)

3.2

15/20

50/60

34

9002N016

16"(400mm)

3.5

15/20

50/60

38

9002N018

18"(450mm)

4.0

15/20

50/60

44

9002N020

20"(500mm)

4.0

15/20

50/60

48

9002N022

22"(550mm)

4.5

15/20

50/60

54

9002N024

24"(600mm)

4.6

15/20

50/60/80

58

9002N028

28"(700mm)

5.0

15/20

50/60/80

68

9002N030

30"(750mm)

5.2

15/20

50/60/80

74

9002N032

32"(800mm)

5.5

15/20

50/60/80/100

78
